Top Relay Board for Raspberry Pi or Other Single Board Computer

 There are numerous benefits to using a Relay Boards for Raspberry Pi and other single board computers on a regular basis. We're here to assist you pick the best product for your requirements out of all the options on the market today.

Top Relay Board for Raspberry Pi or Other Single Board Computer

When deciding on the finest Relay Boards, we considered a variety of factors, ranging from objective factors like physical size and design to subjective factors like appearance and feel. Despite the fact that we have a range of suggestions in diverse styles, all of our selections meet criteria that are acceptable to the majority of people, minimizing the amount of decision confusion. While you may pick a power relay based on its appearance and ratings, we searched for models with simple, beautiful designs – ones that would appeal to the majority of people – rather than those that followed certain aesthetic preferences.

PiRelay 8 Relay Board for Rapsberry Pi

The Raspberry Pi Relay HAT: A Beginner's Guide

Raspberry Pi Relay HATs are self-contained boards that allow your Pi to switch greater voltages and currents from a single board. To create code that activates each relay, use the GPIO library, then go over the board's external relay connections and setup choices.

The Best Relays For Single Board Computer are shown below.

Single Board Relay Boards: A Quick Overview

PiRelay 8 | Relay Expansion Board For Raspberry Pi :

A New Raspberry Pi Expansion Launched on Kickstarter "PiRelay 8 Smart Relay Board for Raspberry Pi" manufactured by SB Components with amazing capabilities and safety features added in this PiRelay 8 and the main attraction to this PiRelay 8 Relay Board is the 4.3" Touch Screen LCD that make it easy to use Relay Board and also you can use this display as a Raspberry Pi Screen to configure PiRelay 8 or more.
PiRelay 8 Smart Relay Board for Raspbebrry Pi
PiRelay 8 | 8 Channel Relay Board For Raspberry Pi

PiRelay v2 Relay Shield for Raspberry Pi

The PiRelay V2 has the ability to handle four appliances and loads up to 250V AC/7 A, 30V DC/10 A, allowing it to control high voltage/current devices. It enables the user to improve the appliance's intelligence. It includes a "Optocoupler," which allows an electrical signal to be transmitted between two separated circuits using light energy. The usage of an optocoupler allows the user to avoid excessive voltages in one portion of the circuit from influencing the other, ensuring the system's safety.

PiRelay V2 Relay Board for Raspberry Pi
PiRelay V2 Relay Board HAT For Raspberry Pi

Pico 3V Relay HAT

Pico 3V Relay HAT is a high-quality two-channel relay with a switching voltage of up to 2A/120V(Max), a switching voltage of up to 2A/24V(Max), and an operating voltage of 3.3V. It comes with a Female Pin Header that allows for easy stacking with the Raspberry Pi Pico.
3v Relay HAT for Pico
Raspberry Pi Pico 3v Relay HAT

Pico Single Channel Relay HAT

Pico Single Channel Relay HAT is a single channel high-quality relay with loads up to 250V AC/7 A, 30V DC/10 A for controlling high voltage/current devices. The Pico Single channel relay is more dependable and efficient to utilize in projects thanks to high-quality components and a strong OptoIsolated output.

250V AC/7 A, 30V DC/10 A Relay HAT
Pico Single Channel Relay HAT

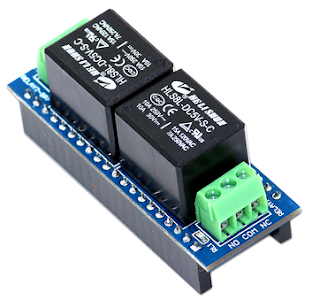

Pico Dual Channel Relay HAT

Pico Dual Channel Relay HAT is a high-quality two-channel relay with loads up to 250V AC/7A, 30V DC/10A for controlling high voltage/current devices. Pico Single Channel Relay's design and appearance are small, with clear pin labelling and extra functional details that make the product's operation simple for consumers.

250V AC/7A Relay HAT for Pico
Dual Channel Relay HAT for Pico

Pico Relay Board

Raspberry Pi Pico Relay Board that can manage up to four appliances and loads up to 250V AC @ 7A, 30V DC @ 10A. Relay control jumpers allow the user to control the relays using custom pins instead of the default pins.

250V AC Relay Board for Raspberry pi Pico
Relay Board For Pico

Relay 4 Zero - 4 Channel 3V Relay Board for Raspberry Pi

Relay 4 Zero is a four-channel relay shield with ratings of 120 V/2A AC and 24 V/2A DC. The Relay 4 Zero is intended for low-voltage triggering. Relay 4 Zero makes your projects smarter by providing a method for managing low and medium current/voltage devices. It might be a good way to control devices that can't be handled directly by the RPi's Digital I/Os.

120 V/2A AC Relay For Pi Zero
Relay 4 Zero

Zero Relay - 2 Channel 5V Relay Board for Raspberry Pi

It's a two-channel relay shield with AC output values of 7A 250 volts and DC output ratings of 10A 30 volts. The Zero Relay was created for high-voltage triggering. Zero Relay is an intelligent home appliance that provides a solution for managing high current/voltage devices. It might be a good way to control devices that can't be handled directly by the RPi's Digital I/Os.

7A 250 volts Relay Board for Pi
Zero Relay Board HAT

Relay Bit - 4 Channel 3V Relay Board for micro:bit

Relay Bit makes your projects smarter by providing a method for managing low and medium current/voltage devices. It might be a good way to control devices that can't be controlled directly by the microbit's I/Os. A seamless connection with micro:bit is made possible by the standardized shield form factor.

2A/24V DC microbit relay board
BBC micro:bit Relay Board

  • 4 High quality 3v relays that loads upto 2A/24V DC or 2A/120V AC
  • 90 Degree micro:bit Connector
  • Relay status indicator led's
  • Standardized Board shape design
  • Make your home IoT enabled
  • Mounting holes provided
